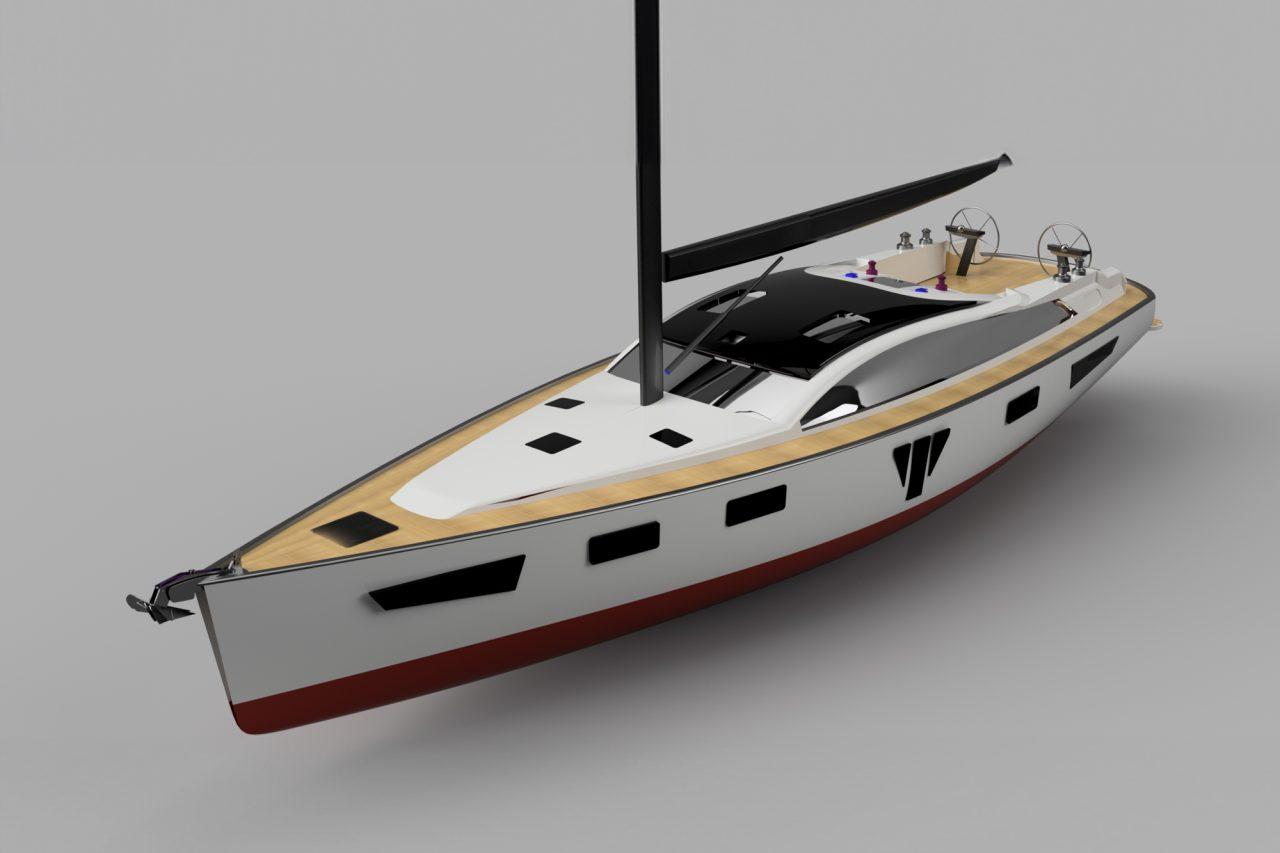

Southerly 580
The Limited Edition 50 Year Anniversary flagship of the swing-keel range.
Length overall
17.73 m (58'1")
Length waterline
15.75 m (51'6")
Beam
5.21 m (17')
Draft (keel up)
1.1 m (3'6")
Draft (keel down)
3.2 m (10'4")
Displacement
24,000 kg (52,910 lbs)
Overview
The Southerly 580 is the flagship of the modern Southerly range, announced as a Limited Edition 50 Year Anniversary model. She carries the marque's defining idea at its grandest scale: a hydraulic swing keel that gives a true bluewater passagemaker a shoal draft of just 1.1 metres with the keel up, and a deep, powerful 3.2 metres with it down.
That variable draft changes what a yacht of this size can do. Ocean crossings, then up a river, over a bar or dried out upright on firm sand: places no other 58-foot bluewater cruiser can follow. A generous sail plan with a self-tacking jib keeps her manageable for a couple, while the 140 per cent furling genoa is there when you want to stretch her legs.
Every Southerly is built to order in Britain, and the 580 is specified with our team, delivered and commissioned in Australian waters, and supported here through her life.
Specifications
Dimensions
- Length overall
- 17.73 m (58'1")
- Length waterline
- 15.75 m (51'6")
- Beam
- 5.21 m (17')
- Draft (keel up)
- 1.1 m (3'6")
- Draft (keel down)
- 3.2 m (10'4")
- Displacement
- 24,000 kg (52,910 lbs)
- Total ballast
- 8,350 kg (18,408 lbs)
- Air draft
- 25.9 m (85')
Rig & sails
- Mainsail
- 92 m² (990 ft²)
- Self-tacking jib
- 59 m² (635 ft²)
- Furling genoa (140%)
- 104 m² (1,119 ft²)
Engine & systems
- Engine
- 140 hp
- Fuel capacity
- 1,392 L (367 US gal)
- Water capacity
- 403 L (106 US gal)
Specifications per the manufacturer. Source. Final specification confirmed with our team.
New build
Southerly 580
Price on application
Enquire for specification options, lead time and pricing. Our team will be in touch.
Configure with our teamLayouts & options
Built to your specification.
Every Southerly 580 is a new build, configured with our team , cabin layout, keel and rig, finish, upholstery and equipment specified around the way you intend to use her. Talk to us about the options, lead time and pricing for yours.
